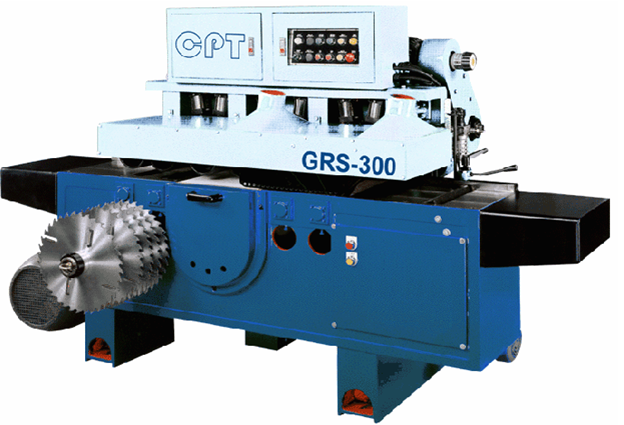

SERIES GRS-300

Specification

GRS-300

Maximum cutting width

300mm

Saw drive motor

30HP，40HP，50HP，60HP

Minimum length of cut

230mm

Feed speed motor

2HP

Cutting thickness

10-80MM

Head elevation motor

1/2HP

Feed speed (variable)

8-20M/min

No. of pressure rollers

10（8ptional）

Sawblade keyway

12mm（width）×2

Dust hood outlet diameter

125mm(5 ")× 2

Distance between keyways

82mm

Table area(L×W)

2470×345mm

Sawblade diameter

305（10- 70）
355(10-95)mm

Table height from floor

850mm

Saw spindle diameter

50mm

Machine dimensions (L×W×H)

2630×1300×1620mm

Sleeve diameter

70mm

Packing dimensions (L×W×H)

2830×1500×1920mm

Spacing collar diameter

（I.D./O.D.）

70mm/115mm

Net weight

（approx） 2100kgs

Spindle speed

3300RPM（50HZ）4000RPM（60HZ）

Gross weight

（approx） 2500kgs
