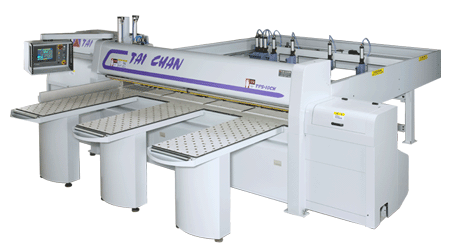

TPS-10CH / TPS-12CH
HIGH SPEED COMPUTER PANEL SAW(PC computer control with Lifting Table & optimization cut function)
TPS-CH series high speed computer panel saw manage to mesh the elements of high speed, high precision and easy operation in a single design concept. The series offers a rigid, stable frame construction, and exhibits optimal rigidity during high speed cutting. Machines come standard with a Japanese Pro-face controller and 15" color monitor or option a 17" LCD computer control, optimized cutting capability and the easiest, most convenient operating characteristics.
Specification:
|
Model
|
TPS-10CH
|
TPS-12CH
|
|
CAPACITY
|
Max. cutting length
|
3200mm
|
3800mm
|
|
Max. cutting width (depth)
|
3200mm
|
|
Max. cutting height
|
0~ 100mm (120mm)
|
|
MAIN
SAWBLADE
|
Main sawblade diameter
|
Ø405mm (Ø455mm)
|
|
Arbor diameter
|
Ø60mm
|
|
Main sawblade speed
|
3910R.P.M.
|
|
SCORING
SAWBLADE
|
Scoring sawblade diameter
|
Ø180mm
|
|
Arbor diameter
|
Ø45mm
|
|
Scoring sawblade speed
|
5100R.P.M.
|
|
SAW
CARRIAGE
|
Forward speed
|
5~ 100 M/min
|
|
Return speed
|
120 M/min
|
|
MOTOR
|
Main sawblade motor
|
20HP (25HP optional)
|
|
Scoring sawblade motor
|
3HP
|
|
Saw carriage drive motor
|
1kw
|
|
High pressure blower motor
|
3HP
|
|
Automatic feed motor
|
2kw (AC servo motor)
|
|
OTHER
|
Pusher feed speed
|
5~80M/min
|
|
Working air pressure
|
7kg/cm²
|
|
Table height from floor
|
950mm
|
