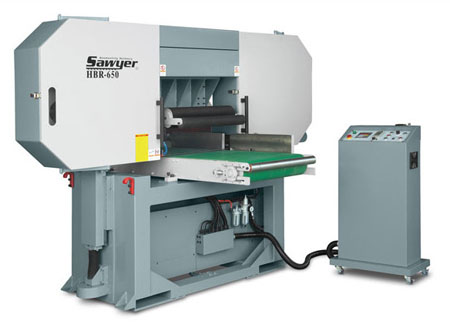

Horizontal Band Resaw HBR-650
Specifications:
|
Model
|
HBR-650
|
|
Maximum Cutting Capacity(WxH))
|
650 × 200mm
|
|
Minimum Cut Piece
|
2 mm
|
|
Saw Wheel Diameter
|
915 mm × 2
|
|
Conveyor Size
|
620 × 4250 mm
|
|
Saw blade Length
|
6600mm
|
|
Saw Blade Width
|
4"
|
|
Saw Wheel Motor
|
30HPIncluding 30HPinverter
|
|
Feed Motor
|
3HP
|
|
Blade lift Motor
|
1/2 HP
|
|
Feed Speed(Variable)
|
0~15m/min
|
|
Machine Dimensions
|
298 × 228 × 210 cm
|
|
Packing Dimensions
|
300 × 228.5 ×227 cm
|
|
Net Weight
|
2500 kgs
|
|
Gross Weight
|
2650 kgs
|
Design and specifications are subject to change without prior notice.
