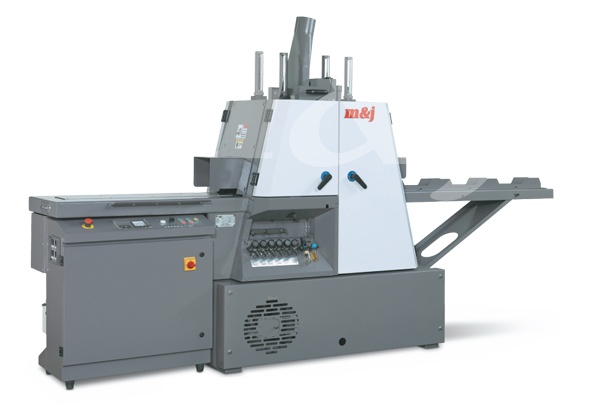

Thin Cutting Frame Saw
Description
Designed For Profitable Production
The F15 Thin-Cutting Frame Saw from Mick & Jack is designed and engineered to enhance the high efficiency and high accuracy cutting. In addition to provide various cutting modes, the F15 also features great material-cost saving that creates profits for customer. The machine is equipped with a micro-computer control for your convenience.
Various Saw blades For Choice
• Upon request, the machine can be supplied with steel welded saw blade or T.C.T. saw blade for choice.
• The customer may choose various saw blade thickness from 0.9 to 1.4 mm to suit various wood materials.
Characteristic 1
|
|
Fine Surface
Extremely fine surface effect after cutting, it permits direct glue jointing for saving 0.15mm sanding tolerance.
|
|
|
Accurate Thickness Of Cut
High accuracy thickness of cut is ±0.1mm. No gapping problem on the cut surface.
|
|
|
|
|
Wood cutting performed by the frame saw may reduce material loss to a minimum for saving production cost.
|
|
|
Saving Cost
The frame saw reduces material loss to a minimum. It saves 20% wood material compare to a conventional machining method.20%之木料。
|
|
|
Centralized Pressure Regulations
• Each pressure roller is equipped with independent pressure regulator for individual air pressure adjustment.
。
• All pressure regulation valves are centralized for convenient adjustment and maintenance.
|
|
|
MICRO-COMPUTER CONTROL
• The machine is equipped with a PLC control for your convenience.
• Electronic components and circuit design fully meet CE safety regulations.
• Comprehensive anti-interference protection devices.
• Self-diagnostic functions and warning lamp displays.。
|
Characteristic 2
|
|
Sawblade Air Blast
The air blast device provides cooling to the saw blades for extending blades service life. In addition, the device can also remove saw dust exists in blade teeth ensuring high quality cutting all the times.
Stable Cutting
The wood to be cut is supported steadily, ensuring high stability of cutting.
|
|
|
|
Guide Fence At Side
In case the guide fence is mounted at the side, the machine allows for cutting a single wood material.。
|
|
|
|
Multiple Guide Fence
Upon request, the machine is available to supply with several guide fences.
Fence sizes can be specified by customer. The use of multiple guide fence enables the machine to cut several wood materials at a time.
|
|
|
Guide Fence At Center Position
Except the situation we've mentioned before, in case the guide fence is mounted at the center position, the machine allows for cutting two wood materials at a time for increasing efficiency.
|
|
Apply
High precision High Efficiency
|
|
|
Thin Wood
|
Toy: Airplane model
|
|
|
|
Musical Instrument: Guitar
|
Stationery:: Pencil
|
|
|
|
Sporting Goods: Ski
|
Composite flooring, stair plate and venetian blind
|
|
Model
|
F15
|
|
Motor
|
15 Kw (20 HP)
|
|
Feed speed
|
0.1~0.8M/min.
|
|
Frame stroke
|
210mm
|
|
Stroke number per minute
|
450rpm
|
|
Height range of cut
|
60~250mm
|
|
Wood height difference
|
± 0.5mm
|
|
Width of cut (side guide fence)
|
60~150mm
|
|
Width of cut (center guide fence)
|
2 × 30~65mm
|
|
Width of cut (channel type)
|
2~4 × 20~65mm
|
|
Minimum block length
|
300mm
|
|
Slice thickness
|
>2.0mm
|
|
Cutting accuracy (60~160mm)
|
± 0.1mm
|
|
Cutting accuracy (160~250mm)
|
± 0.2mm
|
|
Cutting loss
|
0.9~1.4mm
|
|
Approx saw blade number (under 200mm)
|
< 22 pc
|
|
Approx saw blade number (200~250mm)
|
< 12 pc
|
|
Maximum saw blade life (hour)
|
4~24 hour
|
|
Net weight
|
2400 Kg
|
|
Gross weight
|
2600 Kg
|
|
Machine dimensions (L x W x H)
|
3600 × 800 × 1900 mm
|
|
Packing dimensions (L x W x H)
|
2740 × 1200 × 2210 mm
|
Specifications, dimensions and design characterisics shown in this catalog are subject to change without prior notice.
