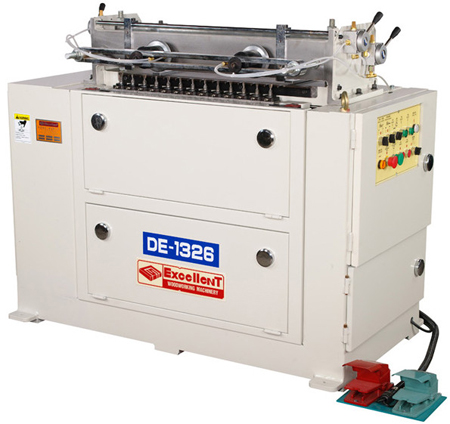

DE-1326
MACHINE FEATURES:
●Pneumatically operated workpiece clamps.
●Automatic operation.
●Equipped with a foot switch for added operational convenience.
●Male and female tenons are cut simultaneously to ensure high jointing accuracy.
●Male and female tenon thickness, height, depth and width are adjustable.
●Air/hydraulic combination cylinder assures extremely stable motions.
●Each cutting tool height can be adjusted individually.
Specification:
Model
|
DE-1326
|
Motor
|
3 HP×2 P.C
|
Capacity (thick) x (wide)
|
3/8″×1-1/4″×27″
|
Number of Tools
|
13
|
Spindle Speed
|
12000-14000 RPM
|
Machine Dimensions
|
62″× 31″× 54″
|
Packing Dimensions
|
69″× 34″× 58″
|
Net Weight
|
1030 KGS
|
Gross Weight
|
1160 KGS
|
