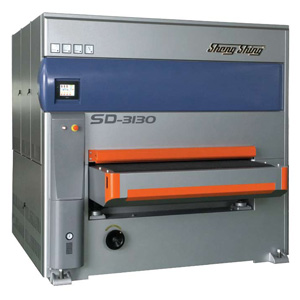

New SD Series

BRILLIANT ENGINEERING CAPABILITY

We focus extensive experience and strong engineering capabilities on your sanding jobs to ensure the solution is a perfect match to your sanding applications.

· Digital readout controller

· Automatic stop

· Air jet cleaner

· Belt oscillation controlled

· Hydraulic conveyor driving

· Cleaning brush

·In-feed emergency brake

· Emergency stop switch

· Four lifting poles

· Quick release locking handle

· Conveyor belt positioning

· Mirco-adjustment by hand wheel

· Truly endless Italian belt

· Amp and Volt meter

TWO HEADS OR THREE HEADS CONFIGURATION

　

· Working Width from 610mm to 1300mm.

· Two heads: 1st. and 2nd. are roller type is ideal for general sanding

· Three heads: 1st. and 2nd. and 3rd. are roller type, it can do calibration and fine sanding in one pass.

· Planer / cutter head is upon request.

The pressure plate is welded from steel plate, hard chrome plated for hardness up to RC 70°, and precise machining for a superior surface finish. Maximum stability and smoothness of panel feeding is achieved through the pressure plate incorporated with rubber covered pressure roller.

The head configuration can be manufactured according to the customer's requirements.

Two heads: AB TYPE

Three heads: AAB TYPE

Two heads: AA TYPE

Three heads: AAA TYPE

　

DIGITAL READOUT CONTROLLED

The conveyor lifting by digital controller and PLC touch screen. Specially designed to automatic operation such as roller, table control and error message.



AUTOMATIC STOP

Limit switches are fitted at both sides of the sanding belt to prevent the belt running from the track. The machine will stop automatically if there is no air supply, no sanding belt mounted, or if the belt becomes loose. Only the elevation driving motor will function. The machine will brake immediately if the sanding belt breaks during operation, providing maximum safety for operator and machine.


　

BELT CLEANING DEVICE

The sanding belt oscillation is controlled by a dust proof air eye. The sanding belt can oscillate in the event of power failure. The oscillation range of the sanding belt is 15 - 20mm. The reverse and cross sanding on the panel creates a better clarity of grain, thus greatly extending the life of the sanding belt.(Optional)


　

SANDING BELT OSCILLATION CONTROL

The sanding belt oscillation is controlled by a dust proof air eye. The sanding belt can oscillate in the event of power failure. The oscillation range of the sanding belt is 15 - 20mm. The reverse and cross sanding on the panel creates a better clarity of grain, thus greatly extending the life of the sanding belt.


　

HYDRAULIC DRIVE CONVEYOR BELT

The super lightweight driving system is mounted at the end of the conveyor table, ensuring maximum feed accuracy and stability. A powerful hydraulic driving system automatically adjusts to the correct pressure regardless of the panel weight or plate holding pressure. The system eliminates belt slipping or chattering while running. (Optional)

　



    BRUSH ROLLER

    Clear away the dust on the working piece in the final step.

    Polishing roller is upon request. (Optional)


Specification:

75" Model/ Rubber Roller Dia 250mm

SD-260

SD-290

SD-2110

SD-2130

Max. working width

610 mm

914 mm

1100 mm

1300 mm

Max. working height

120 mm

120 mm

120 mm

120 mm

Main spindle motor

15 HP, 10 HP

20 HP, 15 HP

30 HP, 20 HP

40 HP, 20 HP

Feed motor

2 HP

2 HP

3 HP

3 HP

Table lifting & lowering motor (digital readout)

1/2 HP

1/2 HP

1/2 HP

1/2 HP

Brush Roller Motor

1/2 HP

1/2 HP

1/2 HP

1/2 HP

Feed speed

4~18 M/min

4~18 M/min

4~18 M/min

4~18 M/min

Size of sanding belt

610 × 1905 mm

915 × 1905 mm

1100 × 1905 mm

1300 × 1905 mm

Dust exhausted

6800 M³/hr

6800 M³/hr

9100 M³/hr

9100 M³/hr

Compressed air consumed

0.35 M³/min

0.35 M³/min

0.35 M³/min

0.35 M³/min

Packing size

(L) 2230 mm
(W) 1480mm
(H) 2090 mm

(L) 2230 mm
(W) 1790mm
(H) 2090 mm

(L) 2230 mm
(W) 2030 mm
(H) 2090 mm

(L) 2275 mm
(W) 2275 mm
(H) 2090 mm

Net weight

2000 kgs

2600 kgs

3000 kgs

3500 kgs

Gross weight

2300 kgs

2850 kgs

3300 kgs

3850 kgs



75" Model/ Rubber Roller Dia 250mm

SD-360

SD-390

SD-3110

SD-3130

Max. working width

610 mm

914 mm

1100 mm

1300 mm

Max. working height

120 mm

120 mm

120 mm

120 mm

Main spindle motor

20 HP, 15 HP, 10 HP

25 HP, 20 HP, 15 HP

30HP, 25 HP, 20 HP

40 HP, 30 HP, 20 HP

Hydraulic pump motor

5 HP

5 HP

7.5 HP

7.5 HP

Table lifting & lowering motor (digital readout)

1/2 HP

1 HP

1 HP

1 HP

Brush Roller Motor  (Choose)

1/2 HP

1/2 HP

1/2 HP

1/2 HP

Feed speed

0~18 M/min

0~18 M/min

0~18 M/min

0~18 M/min

Size of sanding belt

610 × 1905 mm

915 × 1905 mm

1100 × 1905 mm

1300 × 1905 mm

Dust exhausted

10200 M³/hr

10200 M³/hr

13700 M³/hr

13700 M³/hr

Compressed air consumed

0.5 M³/min

0.5 M³/min

0.5 M³/min

0.5 M³/min

Packing size

(L) 2880 mm
(W) 1480mm
(H) 2090 mm

(L) 2880 mm
(W) 1790mm
(H) 2090 mm

(L) 2930 mm
(W) 2030mm
(H) 2090 mm

(L) 2930 mm
(W) 2275mm
(H) 2090 mm

Net weight

2600 kgs

3400 kgs

4200 kgs

5000 kgs

Gross weight

2850 kgs

3700 kgs

4550 kgs

5500 kgs



83" Model/ Rubber Roller Dia 300mm

SD-260

SD-290

SD-2110

SD-2130

Max. working width

610 mm

914 mm

1100 mm

1300 mm

Max. working height

120 mm

120 mm

120 mm

120 mm

Main spindle motor

15 HP, 10 HP

25 HP, 15 HP

30 HP, 20 HP

40 HP, 20 HP

Hydraulic pump motor

-

-

-

5 HP

Feed motor

2 HP

3 HP

3 HP

-

Table lifting & lowering motor (digital readout)

1/2 HP

1/2 HP

1 HP

1 HP

Brush Roller Motor

1/2 HP

1/2 HP

1/2 HP

1/2 HP

Feed speed

4~18 M/min

4~18 M/min

4~18 M/min

0~18 M/min

Size of sanding belt

610 × 2108 mm

915 × 2108 mm

1100 × 2108 mm

1346 × 2108 mm

Dust exhausted

6800 M³/hr

6800 M³/hr

9100 M³/hr

9100 M³/hr

Compressed air consumed

0.35 M³/min

0.35 M³/min

0.35 M³/min

0.35 M³/min

Packing size

(L) 2275 mm
(W) 1500mm
(H) 2160 mm

(L) 2275 mm
(W) 1850mm
(H) 2160 mm

(L) 2275 mm
(W) 2030 mm
(H) 2160 mm

(L) 2275 mm
(W) 2275 mm
(H) 2160 mm

Net weight

2300 kgs

3000 kgs

3500 kgs

4000 kgs



83" Model/ Rubber Roller Dia 300mm

SD-360

SD-390

SD-3110

SD-3130

Max. working width

610 mm

914 mm

1100 mm

1300 mm

Max. working height

120 mm

120 mm

120 mm

120 mm

Main spindle motor

20 HP, 15 HP, 10 HP

25 HP, 20 HP, 15 HP

30 HP, 25 HP, 15 HP

40 HP, 30 HP, 20 HP

Hydraulic pump motor

5 HP

5 HP

7.5 HP

7.5 HP

Table lifting & lowering motor (digital readout)

1/2 HP

1 HP

1 HP

1 HP

Table lifting & lowering motor (digital readout)

1/2 HP

1/2 HP

1/2 HP

1/2 HP

Feed speed

0~18 M/min

0~18 M/min

0~18 M/min

0~18 M/min

Size of sanding belt

610 × 2108 mm

915 × 2108 mm

1100 × 2108 mm

1346 × 2108 mm

Dust exhausted

10200 M³/hr

10200 M³/hr

13700 M³/hr

13700 M³/hr

Compressed air consumed

0.5 M³/min

0.5 M³/min

0.5 M³/min

0.5 M³/min

Packing size

(L) 2800 mm
(W) 1530mm
(H) 2160 mm

(L) 2800 mm
(W) 1850mm
(H) 2160 mm

(L) 2930 mm
(W) 2030mm
(H) 2160 mm

(L) 2930 mm
(W) 2275mm
(H) 2160 mm

Net weight

3000 kgs

3800 kgs

4600 kgs

5500 kgs

Gross weight

3300 kgs

4150 kgs

5000 kgs

5950 kgs



103" Model/ Rubber Roller Dia 420mm

SD-260

SD-290

SD-2110

SD-2130

Max. working width

610 mm

914 mm

1100 mm

1300 mm

Max. working height

120 mm

120 mm

120 mm

120 mm

Main spindle motor

20 HP, 15 HP

25 HP, 15 HP

40 HP, 20 HP

50 HP, 25 HP

Hydraulic pump motor

5 HP

5 HP

5 HP

5 HP

Table lifting & lowering motor (digital readout)

1/2 HP

1/2 HP

1 HP

1 HP

Brush Roller Motor

1/2 HP

1/2 HP

1/2 HP

1/2 HP

Feed speed

0~18 M/min

0~18 M/min

0~18 M/min

0~18 M/min

Size of sanding belt

610 × 2616 mm

915 × 2616 mm

1100 × 2616 mm

1346 × 2616 mm

Dust exhausted

6800 M³/hr

6800 M³/hr

9100 M³/hr

9100 M³/hr

Compressed air consumed

0.35 M³/min

0.35 M³/min

0.35 M³/min

0.35 M³/min

Packing size

(L) 2580 mm
(W) 1580mm
(H) 2360 mm

(L) 2580 mm
(W) 1890mm
(H) 2360 mm

(L) 2580 mm
(W) 2050 mm
(H) 2360 mm

(L) 2580 mm
(W) 2275 mm
(H) 2360 mm

Net weight

3500 kgs

4300 kgs

4900 kgs

5500 kgs

Gross weight

3800 kgs

4650 kgs

5300 kgs

5950 kgs



103" Model/ Rubber Roller Dia 420mm

SD-360

SD-390

SD-3110

SD-3130

Max. working width

610 mm

914 mm

1100 mm

1300 mm

Max. working height

120 mm

120 mm

120 mm

120 mm

Main spindle motor

25 HP, 20 HP, 15 HP

30 HP, 25 HP, 15 HP

30 HP, 30 HP, 20 HP

50 HP, 40 HP, 25 HP

Hydraulic pump motor

5 HP

5 HP

7.5 HP

7.5 HP

Table lifting & lowering motor (digital readout)

1/2 HP

1 HP

1 HP

1 HP

Brush Roller Motor

1/2 HP

1/2 HP

1/2 HP

1/2 HP

Feed speed

0~18 M/min

0~18 M/min

0~18 M/min

0~18 M/min

Size of sanding belt

610 × 2616 mm

915 × 2616 mm

1100 × 2616 mm

1346 × 2616 mm

Dust exhausted

10200 M³/hr

10200 M³/hr

13700 M³/hr

13700 M³/hr

Compressed air consumed

0.5 M³/min

0.5 M³/min

0.5 M³/min

0.5 M³/min

Packing size

(L) 3200 mm
(W) 1580mm
(H) 2360 mm

(L) 3200 mm
(W) 1890mm
(H) 2360 mm

(L) 3200 mm
(W) 2050mm
(H) 2360 mm

(L) 3200 mm
(W) 2275mm
(H) 2360 mm

Packing size

4000 kgs

5100 kgs

6000 kgs

7200 kgs

Gross weight

4400 kgs

5550 kgs

6500 kgs

7800 kgs

※Design and specifications are subject to change without prior notice.
