Hinge Boring Machine HS-1H
Festuees:
-
· Convenient operation is made by simply pressing on a foot pedal. Easy to maintain.
· Mechanical digital read out allows for accurate and consistent depth setting.
-
· Motor starts only when in boring stroke to extend service life, saving power consumption and reducing noise.
· Boring unit from bottom side of workpiece has 2 advantages: Even when the thickness of workpiece has 2 advantages:
Even when the thickness of workpieces differs, the depth doesn't change.
The dust fails into machine's body.
(You don't need to dean dust from the working table.)
-
|
|
|
|
|

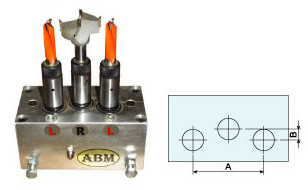

Hinge specifications
|
|
|
|
|
|
NO
|
A
|
B
|
|
1
|
38
|
7.5
|
|
2
|
42
|
11
|
|
3
|
45
|
9.5
|
|
4
|
48
|
-2.5
|
|
5
|
48
|
6
|
|
6
|
48
|
-75
|
|
7
|
48
|
9
|
|
8
|
52
|
5.5
|
|
9
|
52
|
6
|
|
Specification:
|
Model
|
HS-1H
|
|
Hinge boring head
|
52 × 6 mm
|
|
Table size (mm)
|
490 × 1230 mm
|
|
No. of clamp
|
1 HP
|
|
Total motor power
|
2 HP
|
|
Spindle speed
|
2800 rpm
|
|
N.W./G.W.
|
150kgs/170 kgs
|
|
Machine size
|
1230 × 730 × 1330 mm
|
|
Packing size
|
1250 × 830 × 1280 mm
|
* Specifications subject to change without prior notice.
