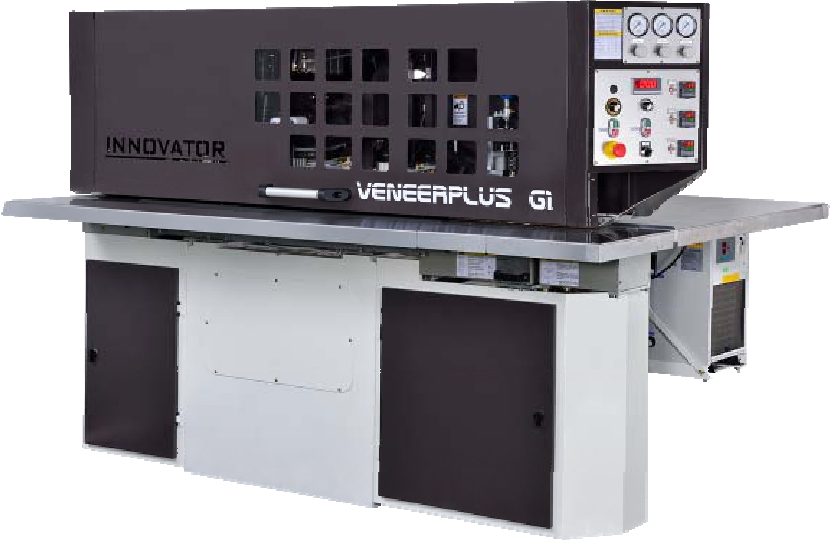

VeneerPlus G1

Item 1: Single veneer longitudinal stitching machine (built-in automatic glue coating system)
Model: VeneerPlus G1 (original automatic cloth LVS-1250)

Mechanical specifications
Veneer thickness (actual splicing thickness depends on veneer quality): approx. 0.35 ~ 1.5 mm
Veneer length: minimum 350 mm
Veneer width: minimum 45 mm
Stitching speed: up to 45 m / min
Electricity: about 5.5 kw
Compressed air: 5 bar
Stitching temperature: 100 ~ 220 °C
Heating section length: 1200 mm
Mechanical dimensions (L x W x H): 2200 x 2100 x 1600 mm
Mechanical net weight: about 1500 kg
Body color: RAL 8019 / RAL 9003


The VeneerPlus G1 has a specially designed automatic gluing system. The user directly transports the trimmed veneer directly to the specially designed disc feeding system. The feeding roller automatically aligns the veneer and transports it to the built-in automatic gluing. system. After the automatic gluing section is completed, it is sent to the heating zone of the rear section to make the veneer coating and splicing process complete once in a single machine, which can effectively avoid the uneven coating surface caused by manual gluing. The specially designed pressurizing and heating mechanical structure makes the spliced solid wood veneer tightly combined and the joints are seamless and without glue lines, which is suitable for high-grade furniture and decorative plywood. Use the Longde veneer veneer double cutter. CutMate D series ensures the parallelism of the veneer after cutting to achieve 100% stitching.


Characteristics

Precise control of chain pressure using special cylinders

Mechanical design fully complies with European safety regulations

Built-in plastic box driven by fine-tunable high-speed motor

Additional automatic cooling system to extend glue usage time

The upper base is precisely controlled by cylinders and linear guides.

Glue rubber adjustment sheet can adjust the amount of glue on the edge of the veneer at the right time

The total electricity consumption is low and the heating section is narrow, which effectively reduces the deformation of the veneer

Sturdy and stable body design ensures stable and non-vibrating body when splicing

The upper and lower thermal insulation strips are all made of chrome, making cleaning and maintenance easier.

The feed section is equipped with a reflective photoelectric sensor to precisely align the splicing veneer

Applicable to the splicing of vertical solid wood veneer, different from the traditional sewing machine

Using thermosetting glue to improve the stitching effect, effectively avoiding the production of glue lines at the joints

Glue-assisted guide block enhances the glue application effect, making the feeding smoother and adjusting the height according to the thickness of the veneer

Built-in automatic glue coating system can efficiently apply glue on the edge of veneer, saving manpower and time to improve production efficiency

Using Europe with the disc-type feeding structure, it is more stable than the traditional roller-type structure, and improves the splicing yield.


VeneerPlus G1
The upper and lower drive chain drives the gear motor with the inverter to control the running speed, and the lower drive chain uses the wear-resistant guide rail to extend the service life.

The whole series adopts Germany imported FESTO pneumatic system, which is a world-famous top brand, which is convenient for parts and after-sales service.
Special engineering plastic drive chain replaces traditional stainless steel chain, effectively reducing the amount of deformation caused by the high temperature of the heating block during veneer splicing
The heater uses a solid-state relay to replace the traditional electromagnetic switch, precisely control the temperature and the contact is non-sparking. The electromagnetic interference is smaller than the traditional electromagnetic switch, and the service life is longer.
