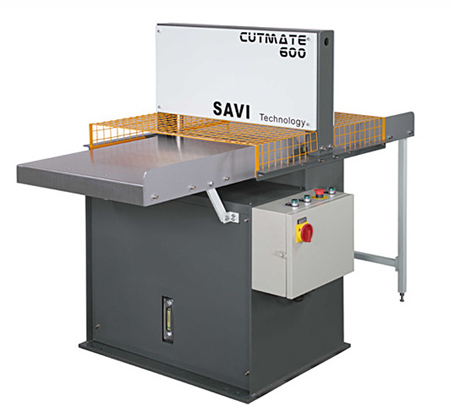

CutMate 800 & 600

Features：

  1. 1.The green-line light indicates the position of the cutting line.
  2. 2.The machine is equipped with protection guards to avoid any human injury.
  3. 3.The rigid welded machine body is capable of cutting even 2.0 mm thick of single veneer sheet.
  4. 4.The pressure of hydraulic-driven knife beam can be adjusted according to the thickness of veneer bundles.
  5. 5.Straightforward electrical control panel is mounted with two-hand release relay for optimal safety concerns.

Specification:

Model

CutMate 800

CutMate 600

Cutting Length

800 mm

600 mm

Daylight Opening

80 mm

80 mm

Hydraulic Motor

5 HP

5 HP

Dimensions (L × W × H)

1230 × 1805 × 1340 mm

1030 × 1805 × 1340 mm

Net Weight

approx 780 kg

approx 620 kg

Color

RAL 7043 / RAL 9016

RAL 7043 / RAL 9016

* Technical data is not binding and can be modified without prior notice.
