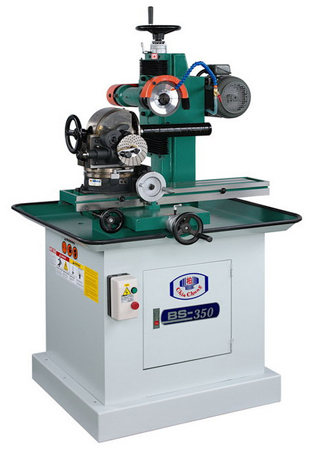

BS-350
Designed for grinding or resharpening finger joint cutter, profile cutter, milling cutter, reversible bevel tenon cutter, three-side, four-side moulder cutter, set of cutterheads with reversible knives, grooving cutter, all kinds of copy shaper and bamboo, rattan cutters.
|
Typical applications
Designed for grinding or resharpening finger joint cutter, profile cutter, milling cutter, reversible bevel tenon cutter, three-side, four-side moulder cutter, set of cutterheads with reversible knives, grooving cutter, all kinds of copy shaper and bamboo, rattan cutters.
|
|
Linear motion guide
Some models of this series are employed with ball bearing or crossed roller linear motion guide to ensure table and longitudinal feed traverse smoothly and accurately.
|
|
Router bit grinding attachment
Maximum shank capacity £p13mm, special 19mm.
|
|
Carbide knife grinding attachment
For sharpening straight knife capacity 200 x 38 x 6.5mm.
|
|
Carbide sawblade grinding attachment
For sharpening maximum sawblade diameter 508mm.。
|
BS-240 Exclusively suited for tool manufacturing factory.
14×14×2mm、15×15×2.5mm、30×12×1.5mm、50×12×1.5mm.
Specification:
Model
|
BS-350
|
Grinding wheel size
|
φ150×16mm
|
Grinding wheel speed
|
3400 rpm
|
Grinding wheel motor
|
3HP
|
Coolant pump motor
|
1/8 HP
|
Table longitudinal travel
|
Roller type linear slide rail
|
The workbench horizontal stroke
|
Roller type linear slide rail
|
Indexing device
|
Precision fine-tuning
|
Machine size
|
800×850×1380mm
|
Packing size
|
1200×1000×1750mm
|
N.W/G.W
|
650/760 kgs
|
Research on the company at any time, so keep change the design, specification, size and the power of the mechanical structure.
The above specifications are for reference only. If you have any question, welcome to contact with me, your guidance.
