Designed for grinding or resharpening finger joint cutter, profile cutter, milling cutter, reversible bevel tenon cutter, three-side, four-side moulder cutter, set of cutterheads with reversible knives, grooving cutter, all kinds of copy shaper and bamboo, rattan cutters.
Typical applications
Linear motion guide
Some models of this series are employed with ball bearing or crossed roller linear motion guide to ensure table and longitudinal feed traverse smoothly and accurately.
Router bit grinding attachment
Maximum shank capacity £p13mm, special 19mm.
Carbide knife grinding attachment
For sharpening straight knife capacity 200 x 38 x 6.5mm.
For sharpening maximum sawblade diameter 508mm.

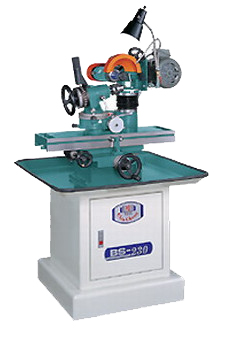

BS-230 Grind capacity:Length 203mm outer dia. 250m
Paring knife grinding device.
Biggest phi the handle size 13 mm, special size 19 mm.
Specification:
Model
BS-230
Grinding wheel size
φ150×16mm
Grinding wheel speed
3400 rpm
Grinding wheel motor
1HP
Coolant pump motor
1/8 HP
Table longitudinal travel
Round rod bearing slides
The workbench horizontal stroke
Roller type linear slide rail
Indexing device
General fine-tuning
Machine size
800×850×1380mm
Packing size
970×900×1480mm
N.W/G.W
240/290 kgs
Research on the company at any time, so keep change the design, specification, size and the power of the mechanical structure.
The above specifications are for reference only. If you have any question, welcome to contact with me, your guidance.
