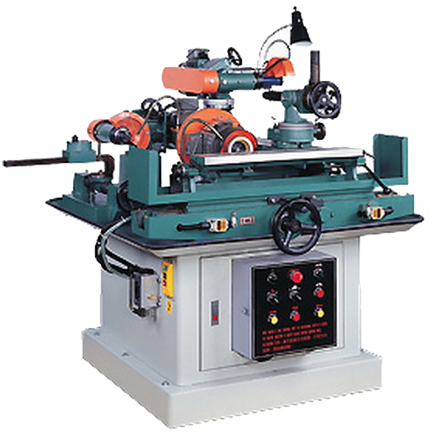

Three with universal grinding machines BS-800
BS-800 Three with universal grinding machines
The native harmony tool grinding, circular saw blade grinding and straight knife grinding and other three functions in one machine.
Each set of grinding body separation, to save space. The machine performance, be applicable to the wood factory.
Specification:
|
Model
|
BS–800
|
|
The grinding ability
|
Cutting tools (diameter x length)
|
φ250×200mm
|
|
Tungsten carbide saw blade
|
φ76~500mm
|
|
Tungsten steel blade (length x width x height)
|
660×76×16mm
|
|
Paring knife (handle)
|
13mm
|
|
Grinding wheel revolutions
|
3400 rpm
|
|
Grinding wheel motor
|
3 HP
|
|
reducer
|
1/4 HP
|
|
Cooling pump motor
|
1/8 HP
|
|
Mechanical dimensions
|
1200×1200×1450mm
|
|
Packing size
|
1530×1480×1570mm
|
|
N.W/G.W
|
750 / 820 kgs
|
Research on the company at any time, so keep change the design, specification, size and the power of the mechanical structure.
The above specifications are for reference only. If you have any question, welcome to contact with me, your guidance.
