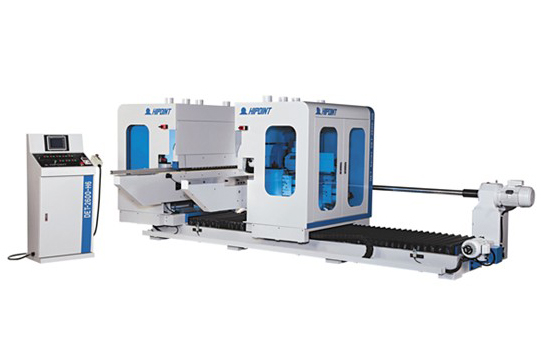

DOUBLE END TENONER
Application：
The DET series Double End Tenoner are designed for those factories who manufacturing panel and / or solid wood furniture.The DET series feature of sequence range for mass production and possibility for sizing, cutting, hogging, trimming, squaring, tenoning, moulding, rounding, sanding, chamfering and grooving.
Which be used on solid & panel wood furniture like OA furniture, kitchen, door & windows, wood & laminate flooring production and etc.
Features：
1.Heavy and rigid constructure to ensure sizing, squaring and tenoning with high precision and productivity.
2.The bed carrying with high precision linear guide way to get perfect parallel at x-axis.
3.Feed chain track system is enriched with precision track linkage which mounted with dust-proof and free lubricated needle bearing to ensure perfect parallel at y-axis.
4.The high precision linear guide way + feed chain track to form the double crisscross movement to guarantee squaring.
5.High accurate needle bearing mounted in precision chain track linkage for dust-proof and free lubrication for 5 years.
6.Automatic positioning device with digital readout in metric, inch or Japanese inch for various operation. No micro-adjustment required.
Standard attachment：
Auto. positioning device for movable stand to control working width.
Digital readout device for thickness adjustment of double side, 2 pcs/set.
Digital readout device for vertical adjustment of workheads, 6 pcs/set.
Digital readout device for horizontal adjustment of workheads, 6 pcs/set.
Feed chain track with rubber pad.
Scoring saw blade 205x25.4x3.0mm x t80 - 2pcs.
Main saw blade 305x25.4x3.0mm x t100 -2pcs./span>
Optional attachment：
Additional cost for wooden case.
Feed chain track with phenolic pad instead of rubber pad.
Feeding system with strengthen support.
Center support.
Center support with auxiliary top pressure roller.
Laser beam for cutting line indication.
Safety cabinet for CE ARE standard.
Additional dog for feed chain track.
Distance between centers of bottom chaintrack sprocket and top belt pulley change from 430 mm to 830/1130mm. (4/6 working unit series)
Jumping device for scoring saw unit.
Scoring saw motor increased to 3HP/5HP.
Main saw motor increased to 7.5HP.
Moulding motor increased to 7.5HP.
Moulding unit with pneumatic top pressure
Pad + Bottom support (chrom plated).
Manual lubrication system.
Auto. lubrication system.
Moulding cutters 150x30x40mm x 6t.
Flooring cutters 137x30x20mm x 6t.
Hogging cutters.
Auto. feeding magazine.
Pre-milling cutter for scoring & main saw (fixed sied).
Specification:
|
MODEL
|
DET-H4
|
DET-H6
|
DET-H8
|
DET-H10
|
DET-H12
|
|
Working units
|
pcs
|
4(2+2)
|
6(3+3)
|
8(4+4)
|
10(5+5)
|
12(6+6)
|
|
Max.
working width
|
mm(ft)
|
1300(4)
|
2000(6)
|
2600(8)
|
3200(10)
|
4000(12)
5000(16)
6000(20)
|
|
Min. working width (on double side)
|
mm(in)
|
220 (8-5/8) OPTION 180 (7)
|
|
Min. working width (on single side)
|
mm(in)
|
110 (4-3/8) OPTION 90 (3-1/2)
|
|
Max.
working thickness
|
mm(in)
|
60 (2-3/8) OPTION 100 (4) / 120 (4-3/4) / 150 (5)
|
|
Scoring saw unit
|
Motor
|
hp
|
2 OPTION 3 / 5 / 7.5
|
|
Spindle
speed
|
rpm
|
3000
|
|
Spindle
dimension
|
mm
|
25.4×28L
|
|
Sawblade
dimension
|
mm
|
120-305
|
|
Min sawing unit
|
Motor
|
hp
|
5 OPTION 7.5
|
|
Spindle
speed
|
rpm
|
H:3000
|
|
Spindle
dimension
|
mm
|
25.4×28L
|
|
Sawblade
dimension
|
mm
|
160-305
|
|
Moulding unit
|
Motor
|
hp
|
5 OPTION 7.5
|
|
Spindle
speed
|
rpm
|
6000
|
|
Spindle
dimension
|
mm
|
30×62L
|
|
Cutter
dimension
|
mm
|
160-200
|
|
Chaintrack system
|
Motor
|
hp
|
2
|
2
|
3
|
5
|
5
|
|
Feed
speed
|
m/min
|
6-24
|
|
Distance
between dogs
|
mm
|
400 OPTION 300 / 200
|
|
Movable side
|
Motor
|
hp
|
1
|
|
Feed
speed
|
m/min
|
2
|
|
Net weight
|
kgs
|
3700~
6000
|
3800~
6100
|
5000~
7300
|
5100~
7400
|
6200~
8400
|
|
Gross weight
|
kgs
|
4100~
6400
|
4200~
6500
|
5400~
7700
|
5500~
7800
|
6600~
9000
|
|
Machine size
|
mm
|
3400 ~ 8100×3200 ~ 4200
|
|
Packing size
|
mm
|
3520 ~ 8220×2270×1900
|
