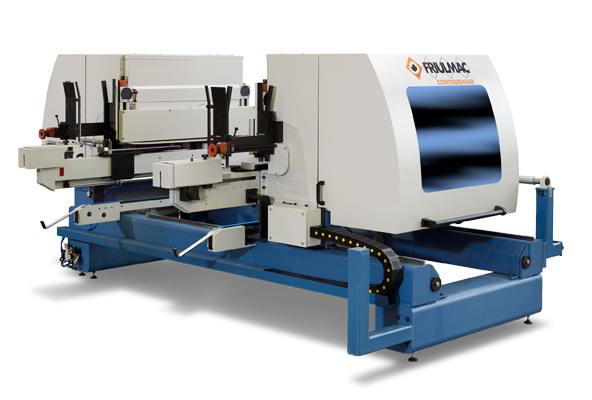

Contourmat 008A

It is used for the furniture parts, cabinet parts, and the end trimming of the door parts, profiling and drilling. It can be solid wood or other materials.

Machine base:

The machine base consists of 2 special welded steel arms. The steel beams are interlocked to form a support table for the processing unit.

The left support table is fixed and the right side is movable to slide along the balls on the precision linear guide. The length adjustment of the moving end is controlled by a 0.37 KW gear motor through two TPN screws.

60 different working lengths can be recorded on the digital "touch screen" on the control panel.

Vertical feeder:

The machine is equipped with a vertical feeder and the width is adjustable. Before entering the processing unit, the work piece is fed into the feeder, the cylinder pushes the work piece into, and the right side is the reference surface.

The maximum allowable length of the work piece is 40mm

To ensure proper process and operator safety, the feeder is equipped with a photoelectric eye to prevent empty running.

Feed system:

The feed is supplied by a power 0.45 kW brushless motor driven by a slot shaft and a precision chain connection.

The work piece on the component to be machined is fed by the clamp, and the clamp slides on the high-precision linear bearing. The forward and reverse movements alternate.

The clamp forward and reverse feed speeds are independently adjustable.

Each work piece clamp has an aluminum stop that pushes the part through the processing zone and prevents collapse.

The top rubber belt pressure system is available on both sides of the machine to ensure the stability of the work piece during processing. The height adjustment of the pressure system is controlled by a hexagonal screw and the data is mechanical digital display.

The work piece is positioned by a vertical invisible stop and then locked by a vertically moving top pressure system; the action of the punching and milling unit is driven by the cylinder.

Electrical Specifications:

The control panel is a touch screen located on a separate electrical cabinet, which can be operated by tapping the graphic on the electronic screen.

The equipment layout construction and all control systems comply with safety regulations.

Slotting and sawing unit:

Composition: 2 horizontal axes are mounted on the same support column

The height and depth of each machining unit can be adjusted and adjusted according to the data on the mechanical watch. Power transmission is done by a polyester-V belt.

End face punching unit:

Composition: Steel plate structure, with screw and needle bearing installed together with the motor as the drilling device, the stroke of the front hole is completed by the cylinder.

Cylinder diameter: 50mm

This drilling unit is mounted on a highly precision linear bearing for precise height and depth adjustment and mechanical data display. The drill bit is driven directly by the motor. The work piece needs to be clamped during machining.

Milling unit:

This unit is a vertical cutter shaft with 2 high speed bearings supported by an aluminum casting. The height and depth of the cutter shaft can be adjusted and mechanically displayed. Power transmission is provided by a toothed belt. The work piece needs to be clamped during processing. This working unit is equipped with a reverse milling clamping cylinder.

Technical Parameters

Processing range: Length Minimum 150mm Maximum 1500mm

Width minimum 30mm

Technical Parameters

Processing range: Length Minimum 150mm Maximum 1500mm

Width minimum 30mm max. 100mm

Height minimum 12mm max 35mm

Slotted, edged and drilled unit motor power 3.0kw

Milling unit motor power 5.5KW

Feed system motor power 0.45kw

Slotting and edge unit shaft rotation speed 7350rpm/min

Milling unit shaft rotation speed 7200rpm/min

Drilling unit shaft rotation speed 5000rpm/min

Slotted and edged unit shaft diameter 30mm

Milling unit shaft diameter 40mm

Horizontal axis available length 5mm

Vertical axis available length 70mm

Tool diameter:

Slotted and edged units:

Minimum diameter 125mm

Maximum diameter 180mm

Milling unit (tool not included)

Minimum diameter 180mm

Maximum diameter 200mm

Adjustment range:

Slotted and aligned unit axis adjustable range

Axial 50mm

Radial 60mm

Milling unit shaft adjustable range

Axial 10mm

Radial 50mm

End face drilling unit axis adjustable range

Axial 50mm

Radial 100mm

Pressure belt adjustment range 50mm

Maximum drilling stroke 80mm (adjustable)

Mechanical reading error is plus or minus 0.05mm

Voltage 400V/50HZ

Special configurations include:

- The motor power of the slotted and trimming unit is increased to 3KW

- Drilling unit motor power increased to 3kw

- Milling unit motor power increased to 5.5KW

- 2 drill boxes 3*32mm (boring head)

- The maximum length of the machined work piece is extended to 1500mm, including the center support rail

- The work piece turning system is transferred to the operator with an electric reducer

- noise safety cover

- Feed rate can be set to 3 different ranges

- The drilling motor is driven by the inverter (5000 rpm)

- Metal detection sensor between the drilling and milling devices on both sides

- This unit 008A has a production capacity of 2 pieces per minute than CONTOURAMAT/007 order No. 10.4424, for the same machined parts.
