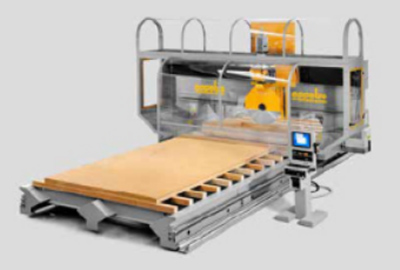

TECHNO WALL
TECHNO WALL
TECHNICAL DATA:
Nr. 6 controlled Axes X - 2Y- Z – B - C
B1 axle rotation (5 axis head) degrees 250°
C1 axle rotation (5 axis head) degrees 540°
B2 axle rotation (blade) degrees 90°
C2 axle rotation (blade) degrees 540°
Standard useful dimension of the
workable wall panels mm.12.000 L x 3500 L x 200
With Optional Blade (5 axis head) mm 12.000 L x 3500 L x 400
X-axis movement speed mt/1’ 100
Y-axis movement speed mt/1’ 100
Z-axis movement speed mt/1’ 32
Electric installation Volts 400/50Hz ± 5%
Air consumption (7 bar) Nl/min 400
