高速四面刨木机（超宽450 mm）

Leadership through Performance and Reliability
With fine features to give you the winning edge in 4 side moulding.

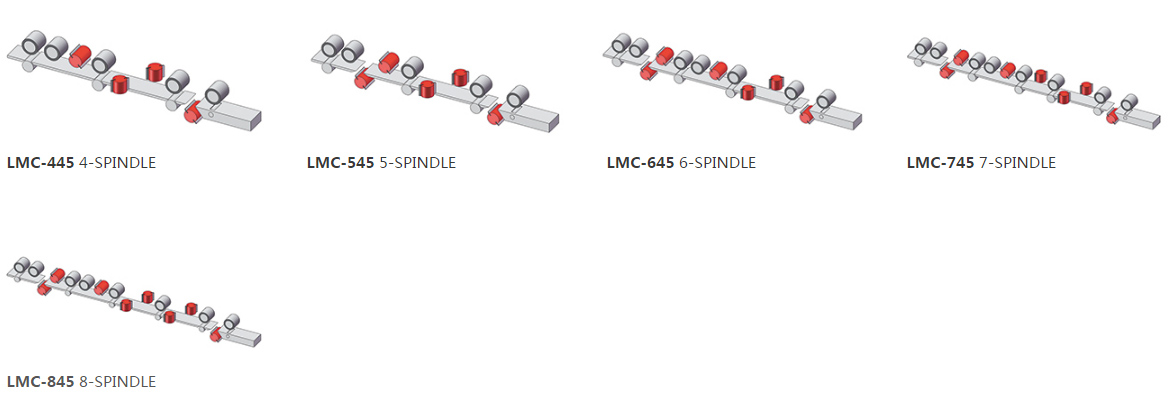

Choice of machine models, from LMC-445(4-spindle), LMC-545 (5-spindle), LMC-645 (6-spindle), LMC-745 (7-spindle) to LMC-845 (8-spindle).
Ideal for producing profiled strips for fingerjointing and sideboard drawer applications.
  • ● Programmable controller provides convenient width and depth of cut setting.
  • ● The full safety enclosure serves as a chip guard and helps to reduce noise.
  • ● Pneumatic pressure of the feed rollers can be easily set to provide an outstanding
  •   feeding effect.
  • ● Table surface is hard-chrome plated for maximum wear resistance.
  • ● One-piece, steel iron machine frame is specially heat treated for maximum stability and
  •   rigidity.
  • ● Each spindle is driven by an individual motor for powerful moulding and easy control.
  • ● The smooth initial feeding of stock is achieved by means of independently pneumatic
  •   feed rollers.




With fine features to give you the winning edge in 4 side moulding

Pneumatic Feeding Rollers
The feed rollers are pneumatically loaded for excellent feeding effect.
3 stage, feed roller pressure setting.

Pneumatic Control Pressure Rollers
Specially designed 6 pneumatically controlled pressure rollers provided on the first bottom spindle assure maximum smoothness for work feeding and perfect surface bottom finish.


ENLARGED OUTBOARD BEARING FOR CUTTERHEAD (OPTIONAL)
The first bottom cutterhead and final spindle are supported by additional hydro outboard bearings providing a solid support. The enlarged hydraulic bearing supports also provide convenient cutterhead change by pulling it out.

Outboard Bearing for Cutterhead (Std.)
The first bottom and top cutterheads are supported by additional outboard bearings, providing a solid support.

Centralized Control Panel
Width and depth of cut setting can be accurately and conveniently made through digital controllers on the control panel.
