高速四面刨木机80~150 m/min

Delivering Unparalleled Speed and Power in a High-Efficiency Automated System



The Power and Precision for World-class Production Quality

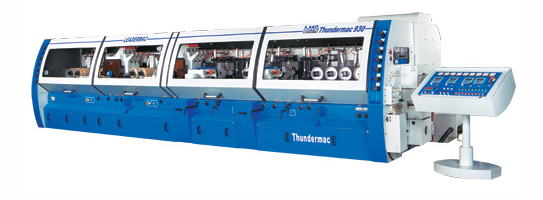

The Thundermac Series is designed for high-capacity, highly quality operations for large and small batch production runs. The heavy-duty spindles are dynamically balanced and run in premium housing bearings, for superior workpiece finish quality.
The Thundermac provides perfect surface quality, eliminating the need for sanding on planed and profiled surfaces. Width and thickness setting controller is supplied as standard, lowering downtime and increasing efficiency.

For All Your woodworking Applications
Choice of Machine Models - from Thundermac LMC-523T (5-spindle) to LMC-1023T (10-spindle).

OUTSTANDING FEATURES:

  •  All moulders awarded with CE certification.
  • ● Faster feed speeds of up to 80 meters a minute (265 fpm) are standard - to 150
  •   mpm (500fpm) - optional.
  •  Programmable controller provides convenient thickness and width of cut settings.
  •  Adjustment of each spindle can be easily performed using the front adjustment level.
  •  Exclusive, separate adjustment of the vertical spindles and the support tables
  •   allows the tables to be positioned extremely close to the cutterheads for added
  •   cutting stability.
  •  The full safety enclosure serves as a chip guard and helps to reduce noise.
  •  Each spindle is driven by an individual motor for powerful moulding and easy control.
  •  Multiple pneumatic pressure of the feed rolls can be easily set to provide
  •   an outstanding feeding effect.
  •  Table surfaces are hard-chrome plated for maximum wear resistance.
  •  All manually adjusted & turning parts are housed in dry grease lubricated  bearings for
  •   oil-free lubrication.
  •  Automatic lubricator is provided to supply oil to the feed tables.
  •  One-piece, Extra Heavy machine frame is specially heat
  •   treated for maximum stability and rigidity by standar
  •   configuration.
  • ● The powered outfeed rolls provide stable and smooth workpiece
  •   outfeed even for especially thin or smooth materials. The rolls
  •   remain perfectly parallel even after long-term use.
  •  Mechanical digital readouts for all head and pressure
  •   elements & the pressure elements of top spindle.
  •  Sectional Chip Breaker Assembly in front of top spindle.
  •  Motorized vertical adjustment of the top spindle including
  •   PC digital readouts.
  •  Finest Alloy Steel Spindles and housings with 2 sets of
  •   Ultra Precision Duplex Bearings in each spindle. All are
  •   permancently greaselubricated.


  •  Built in Straight & Profile jointers provide accurae operation with high quality finish.
  •  The full safety enclosure serves as a chip guard and helps reduce noise.


Speed Up Your Moulding Operations with the Latest Technological Breakthroughs from LEADERMAC.


CENTRALIZED LUBRICATION POINTS
Greasing to all critical parts is conveniently made by the centralized arrangement of lubrication points.

HEAVY DUTY GEARBOX & MOTOR

The feed rollers are driven through a combination of universal shafts and gearboxes, ensuring no loss of power transmission. A smooth feeding effect is assured. Heavy duty gearboxes have no backlash and provides powerful and accurate feeding performance.



HEAVY-DUTY INDEPENDENT PRESSURE PAD
The sturdy and robust pressure pad is located above the bottom spindle, and is mounted to the machine body. This design reduces vibration and increases operation stability. The pad elevation is electronically controlled.

PROGRAMMABLE CONTROLLER
The width & thickness setting can be easily set using the programmable controller. The desired values for width and thickness can be conveniently pre-set and are displayed on an LED Readout. The feed speed is VFD inverter controlled with LED Readout.

CONVENIENT SPINDLE ADJUSTMENT
Adjustment of all spindles is easily done from the front. The adjustment points are all at the same height, for more convenient and faster adjustment.

FEED SYSTEM
The infeed rolls work in conjunction with a limit switch (gate) to stop the machine if workpiece is too thick or there is double up.

DESIGNED FOR PARAMOUNT STABILITY
Powerful, heavy-duty pneumatic side and pressure shoes for the left spindle provide extremely stable pressure for high-speed operations. A pneumatic top pressure roller in front of the right vertical spindle ensures constant stock feed.

  POWERED INFEED ROLLER
The smooth initial feeding of the stock is achieved by means of the independently powered top & bottom infeed rolls.

SELF ACTUATING FIRST FEED ROLLER
The first feed roll (with Built in clutch) is powered, but with high speed infeed, the roll will run freely, eliminating potential damage to the workpiece and machine. This allows for smooth operation with exceptionally high feed speeds.

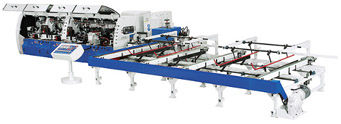

FULLY AUTOMATIC FEEDING SYSTEM (Optional)


When the system detects the workpiece on the infeed chains, the hydraulic feed system will pneumatically lower and activate the top roll to feed the workpiece into the machine. This provides constant and stable feed, reducing labor requirements and decreasing cycle time.



FEED PRESSURE SYSTEM
Feed Table Bridge - Side and top pressure system for workpiece feed provides efficient and best control feeding.

PROGRAM SYSTEM (Optional)
The program computer system allows for the programming and storing of 24 sets of dimensions. When the desired dimensions are entered, the left and top spindles automatically move to the corresponding position. This system eliminates the need for trial runs.

Duel Electric Digital Readout (Optional)
Provides more efficient tool changing.

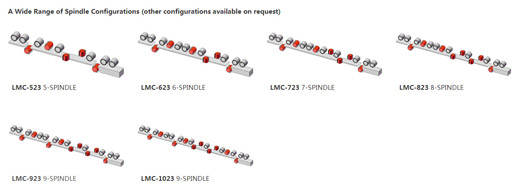

A Wide Range of Spindle Configurations
(other configurations available on request)
