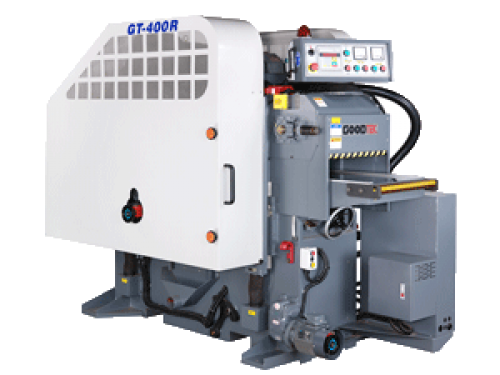

Double surface planer GT-400R

GT-400R Double surface planer

• Working width405mm (16")

• Working Hight300mm (12")

• Suitable for planning big workpieces

• Equipped with spiral cutterheads

• CE certificate



STANDARD ACCESSORIES：

• Well laid-out pressure spikes

• Fast knife replacement

• Fast and convenient belt tension adjustment

• Swiveling control panel

• Automatic lubricator

• Feeding inverter

• Gear reducer

• Equipped with NO. 1 helical cutterhead

• CE certificate

• Throw-away type T.C.T. spiral cutterhead

• Digital thickness setting

• Special-designed sawblade with cutter teeth

• Transmission overload warning lamp

• Automatic lubrication system for the infeed chain

• Powered elevation of upper mechanism

• The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance

• The dovetailed slideways on the table elevation assure outstanding rigidity and stability

• Sectional infeed rollers

• Three side planer with big workpiece(400mm x 300mm max)




Feeding inverter+gear reducer

To make the operation simple and convenient, and the transmission efficiency is better, the machine adopts feeding frequency conversion with gear reducer.






Side dressing device+Intensive pressure plug

This device is a patent of the machine design. Using the special power parts, with the right angle trimming device, so that the upper and the lower plane can be cutting out90°This device is a patent of the machine design. Using the special power parts, with the right angle trimming device, so that the upper and the lower plane can be cutting out




Side dressing blade feeding device

Lateral trimming feed production, digital display, to facilitate the operation.







Electronic component

The electronic control system consists of high quality components which meet European standards. The control circuit is neatly arranged for convenient maintenance.












NO.1 Helical cutterhead

The helical cutterhead is precision machined Provides extremely fine surface of cut with minimum noise. The helical cutterhead is fitted with throw-away T.C.T knife bits.






Digital positioning control

The thickness of cut can be controlled by a digital positioning control. Once the preset position is reached, the table elevation stops automatically.






Specification

Model

GT-400R

Maximum Width Of Cut

405mm ( 16" )

Maximum Thickness Of Cut

300mm ( 12" )

Minmum Thickness Of Cut

10mm

Minmum Lenght Of Cut

250mm

Knife Nos. Cutterhead

102pcs

Knife Sizes

TCT 15x15x2.5mm

CutterHead Speed

5000RPM

Variable Feed Speed-inverter

7-20m/min

Dust Hood Outlet Diameter

5"x2 , 4"x1

Table Surface Area

19"x86"

Top Cutterhead Drive Motor

10HP

Buttom Cutterhead Drive Motor

7.5HP

Saw Motor

10HP

Feed Drive Motor

2HP

Upper Mechanism Elevation Motor

1/2HP

Machine Dimensions(LxWxH)

2320x1250x1830mm

Net Weight

2400kg

Packing Dimensions(LxWxH)

2400x1330x2070mm

Gross Weight

2600kg


※ To ensure technological excellence, specifications are subject to change without prior notice。
