Double surface GTM-1020W

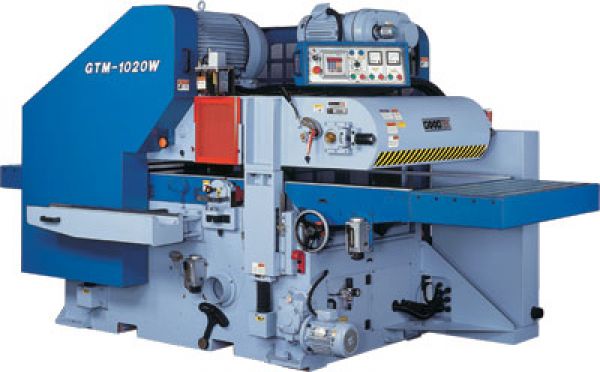

GTM-1020W double surface

• Maximum cut width up to1020mm

• top cutterhead drive 40(50)HPMotor

• bottom cutterhead drive 30(40)HPMotor

• Table surface is hard chrome plated and precision ground thereby assuring smooth feeding motion and maximum wear resistance

• Sectional infeed roller

• Equipped with mechanical overload warning lamp

• The table is equipped with four powered roller

• Powered elevation of upper mechanism

• Heavy duty machining

Ruggedly constructed throughout  !


STANDARD ACCESSORIES:

   Rear cutting mechanism

   Helical cutterhead rest

   Pneumatically operated disk brake

   Convenient and accurate front table adjustment

   Swiveling control panel

   Infeed and outfeed extension roller

   Slidway stabilizing cylinders

   Powerful transmission system

   High quality electronic components

   The four table rollers provide superior feeding performance

• Standard Y-delta motor starting

• Quick belt change for bottom cutterhead

• Automatic lubrication for feeding chain

• Automatic lubricator provides convenient lubrication to caterpillar chain slideways

• An air wrench is applied for removing or installing knives and saves knife change time.

• The upper and lower cutter heads are spiral cutter heads

• The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance

• The dovetailed slideways on the table elevation assure outstanding rigidity and stability

• Sectional infeed rollers

• Maximum cutting width up to 1,020mm


0

Pneumatically operated disk brake

The top and bottom cutterheads are equipped with pneumaticlly operated disk brakes which provide instant stop of cutterhead running. This ensures safety protection for the machine and the operator.





Convenient and accurate front table adjustment

The front table elevation is easily adjusted b turning a big handwheel combined with the worm gear mechanism. A mechanical meter is provided on the handwheel for accurately indicating the bottom cut thickness adjustment.




High quality electronic components

The electrical control system consists of high quality components which meet European standards. The control circuit is neatly arranged for convenient maintenance.










Powerful Transmission system

The feed rolles and table rollers are driven by the specially-designed double cain drive. This greatly upgrades feeding power and smoothness.











Helical cutterhead rest

The helical cutterhead can be conveniently pulled out and provides convenient knife bit replacement.





Swiveling control panel

The specially-designed swiveling control panel allows the operator to use the machine conveniently in any position.





Specification

Model

GTM-1020W

Maximum Width Of Cut

1020mm ( 40" )

Maximum Thickness Of Cut

200mm ( 8" )

Minmum Thickness Of Cut

10mm

Minmum Lenght Of Cut

310mm

Knife Nos Cutterhead

328pcs(x2)

Knife Sizes

TCT 15x15x2.5mm

CutterHead Speed

4000RPM

Variable Feed Speed-inverter

8-24m/min

Dust Hood Outlet Diameter

6" x 4

Table Surface Area

40"x103"

Top Cutterhead Drive Motor

40(50)HP

Buttom Cutterhead Drive Motor

30(40)HP

Feed Drive Motor

7.5HP

Upper Mechanism Elevation Motor

1HP

Machine Dimensions(LxWxH)

2750x1950x1800mm

Net Weight

6300kg

Packing Dimensions(LxWxH)

2830x1950x1940mm

Gross Weight

7000kg


To ensure technological excellence, specifications are subject to change without prior notice。
