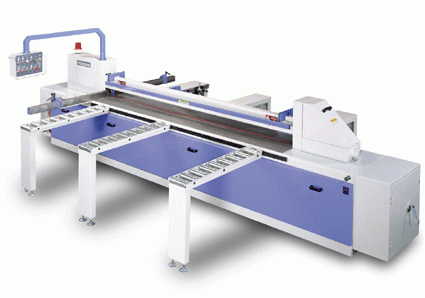

TPS-8 / 10 / 12

PC computer control with Lifting Table & optimization cut function

Specification:

Model

TPS-8SH

TPS-10SH

PS-12SH

CAPACITY Max. cutting length 2600mm 3200mm 3800mm
Max. cutting depth 3200mm
MAIN
SAWBLADE 		Main sawblade diameter Ø405mm
Arbor diameter Ø1"
Main sawblade speed 4800R.P.M.
SCORING
SAWBLADE 		Scoring sawblade diameter Ø180mm
Arbor diameter Ø1"
Scoring sawblade speed 6500R.P.M.
SAW
CARRIAGE 		Feed speed 5~40M/min
Return speed 70 M/min
MOTOR Main sawblade motor 15HP
Saw carriage drive motor 3HP
Saw carriage drive motor 2HP
High pressure blower motor 3HP
Automatic feed motor 1kw (AC servo motor)
OTHER Number of clamps  7 8 9
Number of floating tables 3 3 4
Clampers system pull speed  5-70M/min
lampers system push speed 5-60M/min
Working air pressure 7kg/cm²
Table high from floor 850mm
