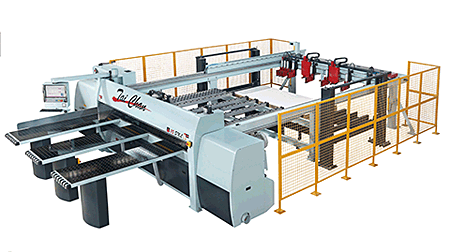

TPS-10SNL / TPS-12SNL
HIGH SPEED COMPUTER PANEL SAW(PC computer control with Lifting Table & optimization cut function)
The TPS-SNL series of Panel Saws come equipped with PC computer control combined with specially designed software to enhance versatility and maximum operational convenience. The LCD screen and outstanding software make the control system easy to understand, learn and operate. Powerful computer functions included editing, operation control, machining motion flow display, trouble indication and motion monitoring.
Specification:
|
Model
|
TPS-10SNL
|
TPS-12SNL
|
|
CAPACITY
|
Max. cutting length
|
3200mm
|
3800mm
|
|
Max. cutting height
|
0~100mm (120mm optional)
|
MAIN
SAWBLADE
|
Main sawblade diameter
|
Ø405mm (Ø455mm)
|
|
Arbor diameter
|
Ø60mm
|
|
Main sawblade speed
|
3910R.P.M.
|
SCORING
SAWBLADE
|
Scoring sawblade diameter
|
Ø180mm
|
|
Arbor diameter
|
Ø45mm
|
|
Scoring sawblade speed
|
5100R.P.M.
|
SAW
CARRIAGE
|
Forward speed
|
5~100 M/min
|
|
Return speed
|
120 M/min
|
|
MOTOR
|
Main sawblade motor
|
20HP (25HP optional)
|
|
Scoring sawblade motor
|
3HP
|
|
Saw carriage drive motor
|
1kw
|
|
High pressure blower motor
|
5HP
|
|
Automatic feed motor
|
1kw (AC servo motor)
|
LIFTING
TABLE
|
Hydraulic motor
|
5HP
|
|
Horizontal motion motor
|
1HP
|
|
Max. loading capacity
|
7 tons
|
|
OTHER
|
Pusher feed speed
|
5~80M/min
|
|
Working air pressure
|
7kg/cm²
|
|
Table height from floor
|
1020mm
|
