Feature:
1.Specially designed Bakelite fitted on the blade guide assembly giving rigid, positive side support.
2.The table is made of cast iron and the surface is precision ground. The table can tilt to a maximum of 45 degrees, front downward, for different blade widths.
3.The cast iron top and bottom saw wheels are precision machined and dynamically balanced for smooth running.
4.Crown shaped wheel surface provides added stability of blade.
5.The see-through guard provides added stability of blade.
6.The see-through guard provides operator safety and protection.
7.The foot brake permits the quick shut down of machining operations.
8.The heave gauge steel frame ensures stable and vibration free cutting.
9.4”diameter exhaust chute supplied standard.

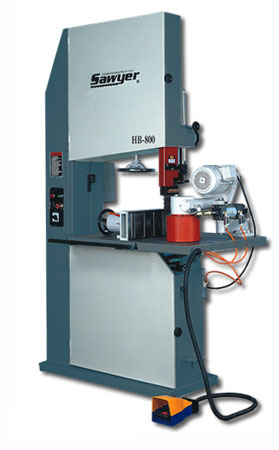

Picture shown pneumatic power feeder is optional.
BLADE ADJUSTMENT MECHANISM
1.Blade guide fixing knob
2.Blade guide raising hand wheel
3.Blade track adjustment knob
4.Blade tension hand wheel
5.Blade tension indicator
ELECTRICAL CONTROL PANEL
The electrical control switches are centralized on a control panel for yoperation convenience. The blade start is controlled by a Y-starting switch for safe and smooth starting of the blade.
Convenient table tilting
Warm gear trunnion allows for effortless tilting of the table.
Specification:
Model
HB-600
HB-700
HB-800
Saw Wheel Diameter
600mm(24")
700mm(28")
800mm(32")
Table
800×605mm
(31-1/2"×23- 7/8)
1000×700mm
(39-3/8"×27-5/8")
1150×800mm
(45-1/4"×31- 1/2")
Table tilting
0°~45°
0°~30°
Throat capacity
580mm(22-7/8")
678mm(26-3/4")
778mm(30-5/8")
Height capacity
350mm(13-3/4")
420mm(16-1/2")
390mm(15-3/8")
Width of wheel
68mm
75mm
90mm
Blade speed
710RPM(4458 F.P.M)
600RPM(4396 F.P.M)
600RPM(5024 F.P.M)
Blade length
4394~4454mm
(173"~175- 3/8")
5100~5150mm
(200-3/4"~202-3/4")
5485~5515mm
(216" ~217-1/8")
Blade width
75mm(3")
100mm(4")
Dust hood diameter
Φ4"×2
Motor
5HP
7.5HP
15HP
Net weight
340kg
500kg
665kg
Gross weight
450kg
650kg
880kg
Machines Size
1060×800×2070mm
1330×900×2290mm
1500×930×2420mm
Packing Size
2160×630×1100mm
2380×720×1210mm
2530×850×1410mm
Design and specifications are subject to change without prior notice.
