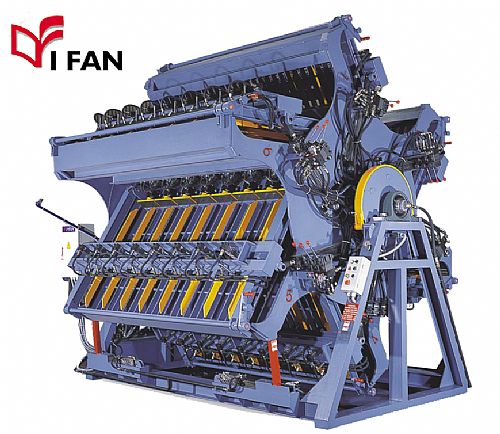

6-FAN HYDRAULIC ROTARY COMPOSER
Model : MDR6-2500-1300 DISMANTLE TYPE
Working size : L=2500 × W=1300 × T=30-150mm
Oil pressure type:
Up pressure : 80Ø × 80 1 Side 6 PCS Total 36 PCS
Mid pressure : 40Ø × 150 1 Side 6 PCS Total 36 PCS
Side pressure : 63Ø × 550 1 Side 2 PCS Total 12 PCS
Pressure : 140kg / cm²
Motor : 3HP 6P
Speed Reducer：155# 1/600
Hydraulic Pump : 10HP
1. MDR6 model has 6-section with side-pressure and up-pressure and mid-pressure hydraulic cylinders.
2. Working size is2500*1300*120mm (other sizes upon request are available).
3. The most powerful model Rotary Com-poser, which is very popular in building material and furniture industries.
4. Well-designed hydraulic system, most heavy-duty construction and easy operation.
This machine makes the best quality glue boards for quality products.
There are the other size we could provide for you
DR6-5200-1300 DR6-4600-1300 DR6-6200-1300
Special specifications can be designed and manufactured upon request.
