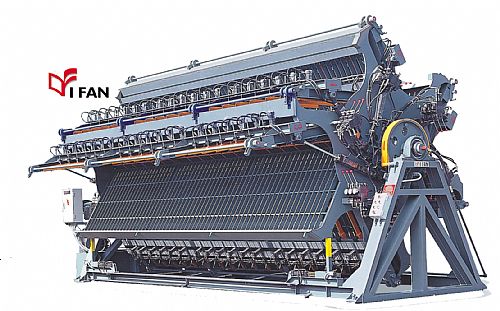

6-FAN HYDRAULIC ROTARY COMPORSER (HEAVY-DUTY) CE
Model: DR6-6200-1300
Working Size: L=6200 × W=1300 × T=30-120mm
Oil Pressure Type:
Up pressure : 80Ø × 80
Mid pressure : 40Ø × 150
Side pressure: 63Ø × 530
Pressure:140kg / cm²
Motor:3HP 6P
Hydraulic pump:15HP
1.DR6 model has 6-section with side-pressure and up-pressure and mid-pressure hydraulic cylinders.
2.Working size is 6200×1300×120mm (other sizes upon request are available).
3.The most powerful model Rotary Com-poser, which is very popular in building material and furniture industries.
4.Well-designed hydraulic system, most heavy-duty construction and easy operation.
This machine makes the best quality glue boards for quality products.
Special specifications can be designed and manufactured upon request.
