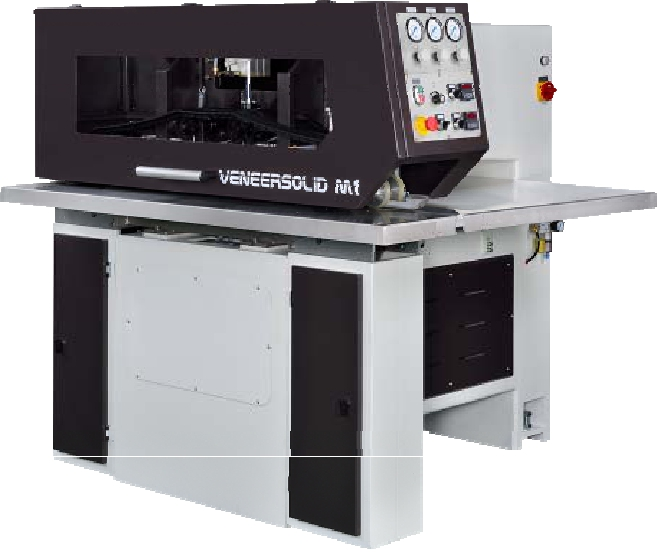

VeneerSolid M1
Item
3: Veneer veneer longitudinal stitching machine
Model:
VeneerSolid M1 (original manual rubber 950)
Mechanical
specifications
Veneer
thickness (actual splicing thickness depends on veneer quality): approx. 0.35
mm ~ 1.5 mm
(There
is also a solution for splicing thickness 1.5 ~ 3.5 mm veneer)
Vene
length: minimum 200 mm
Veneer
width: minimum 45 mm
Stitching
speed: up to 30 m / min
Electricity:
about 4 kw
Compressed
air: 5 bar
Stitching
temperature: 100 ~ 220 °C
Heating
section length: 800 mm
Mechanical
dimensions (L x W x H): 1500 x 1500 x 1500 mm
Mechanical
net weight: about 950 kg
Body
color: RAL 8019 / RAL 9003
Longde's
veneer veneer stitching machine VeneerSolid M1 is designed for splicing veneer
veneer. It is suitable for vertical solid wood veneer splicing. It is easy to
operate and can eliminate the shortcomings of traditional sewing machine.
Suitable for short material stitching. The operator passes the veneered edge of
the veneer to the pre-applied section and dries it, and then directly conveys
it to the stitching machine for splicing. VeneerSolid M1 adopts specially
designed pressure and heating mechanical structure, using thermosetting glue as
the splicing medium, so that the spliced solid wood veneer is tightly combined
and the joints are seamless and without glue line, which is suitable for
high-grade furniture and decorative plywood. Not only can the user's production
efficiency be improved, but also the post-stage polishing process can be
reduced, thereby effectively reducing the production cost. The use of the
Longde veneer double-cutting cutter CutMate D series and the veneer
double-sided automatic gluing machine GlueMate 700 ensure the parallelism of
the veneer and the most complete gluing section to achieve 100% stitching
effect.
Characteristics
The base uses linear guides to control positioning
Mechanical design fully complies with European safety
regulations
veneer veneer must be spliced after pre-coating
is the most cost-effective machine in the market
Use special cylinders
to precisely control chain pressure and upper pedestal lifting
The total electricity consumption is low and the heating
section is narrow, which effectively reduces the deformation of the veneer
The upper and lower thermal insulation strips are all
made of chrome, making cleaning and maintenance easier.
Sturdy and stable body design ensures stable and
non-vibrating body when splicing
The feed section is
equipped with a reflective photoelectric sensor to precisely align the splicing
veneer
By adjusting the stitching speed and
temperature, the veneer stitching thickness can reach 3.5 mm
Using thermosetting glue to improve the stitching effect,
effectively avoiding the production of glue lines at the joints
The upper and lower drive chain drives the gear motor
with the inverter to control the running speed, and the lower drive chain uses
the wear-resistant guide rail to extend the service life.
The whole series adopts Germany imported FESTO pneumatic
system, which is a world-famous top brand, which is convenient for parts and
after-sales service.
VeneerSolid M1
Special engineering plastic drive chain replaces traditional stainless steel chain, effectively reducing the amount of deformation caused by the high temperature of the heating block during veneer splicing
The heater uses a solid-state relay to replace the traditional electromagnetic switch, precisely control the temperature and the contact is non-sparking. The electromagnetic interference is smaller than the traditional electromagnetic switch, and the service life is longer.
Optional equipment
1. "Front feed baffle positioning device" makes the feeding of the veneer with thickness 1.5 ~ 3.5 mm smoother.
* After the feeding synchronous system device is installed in the first feeding wheel, the operator only needs to put the veneer to be spliced into the synchronous baffle, and the induction electric eye activates the clutch to drive the feeding wheel, and the veneer is accurately sent into the fight. Stitching in the sewing machine to achieve 100% simultaneous stitching.
