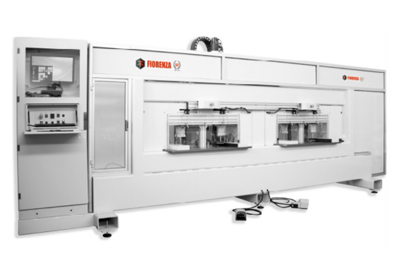

BORD2 SUITABLE FOR EDGE-BANDING AND TRIMMING, WITH 2 WORKING STATION
BORD2 SUITABLE FOR EDGE-BANDING AND TRIMMING, WITH 2 WORKING STATION
Technical data:
Color RAL 9002
Carter color RED
Power supply: 380V 50Hz
Air pressure: 6[bar]
Air consumption: [lt/h] 2400
Suction speed: [m/s] 30 (min)
Edge band sliding speed[m/min] 9 ÷ 18
Part dimensions : 100
Length min [mm] No limit
Length max [mm] 40
Width min [mm] 200
Width max [mm] 12
Heigth min [mm] 40
Heigth max [mm]
Edge band thickness:[mm] 0.15 ÷ 2
Type of glue: Hot-melt base EVA (mPa.s 70000 ÷ 100000)P.U.R
