SPA90° Automatic Through-Clamp
SPA90° Automatic Through-Clamp

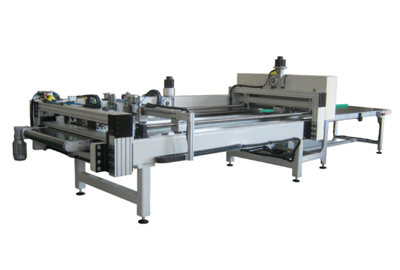

Product picture:
DESCRIPTION:
FIORENZA Automatic Through-Clamp
Platform for longitudinally pressing, with a clamping surface made in one piece, driven by precision ball screw spindle.
Cross-bridges for lateral pressing, with two plates blocks responsible of pressing the side of the door, retractables, to allow door load and unload.
Movement accurate and silent due to the use of linear guides recirculating ball. High positioning speed.
Maneuvers of loading, positioning, pressing and unloading, fully automatic.
Machine base equipment
· High speed positioning (1100mm/seg) that enables production of up to 2 doors/minute.
i Mobile control panel equipped with touch screen programmer with all control functions integrated (time and pressing force, type of maneuver, limiting development, size and storage of parts, alarm management)
· Conveyor belt with variable speed (10-35 m / min)
· Transport height 800mm.
· Integrated preassembly area 2500mm length, with guide for alignment.
· Maximum working sizes 2200x1.200x30mm
· Minimum working sizes 300x300x15mm
Electric supply
Electric connection 400 V, 50 cps, 3 phases
Voltage fluctuations max. + 6 % to - 10 %
Pneumatic connection 7 bar
· Machine color
structural lacquer with and the protections blade red
