DRILLING MACHINE
DRILLING MACHINE
· The Fiorenzai system Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit 90 degrees for quick set-up
· Accurate positioning of the boring unit to the table with mecanical readout.

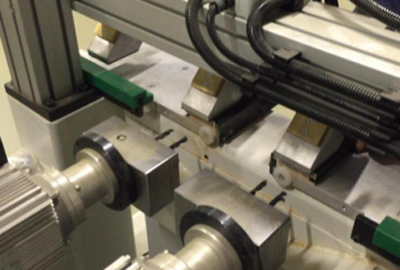

· Horizontal drilling units with two drilling heands
HP 1.1 spindle motor at 2800 rpm.
Drilling unit with 3 spindles with 32-22mm pitch, cylindrical fitting 10mm diameter. Drilling stroke through pneumatic cylinder with control for a perfect finishing.
· Cast iron side fences with ruler and magnifying glass.
· Mirror imaging device to ensure quick and accurate set-up of the side fences.
· Line boring fence with (2) stops; foot actuated pneumatic clamps and drill cycle.
· Includes: Magnetic starter with overload protection and (21) quick change chucks.
· N° 2 digital displays for Z-axis (height) adjustment of the boring units and readout on magnetic band sensor (accuracy: ±0.1mm).
· N° 2 digital displays for X-axis adjustment of the boring units and readout on magnetic band sensor (accuracy: ±0.1mm).
Pneumatic connection 7 bar
Machine color:
Structural lacquer white
Protections red
