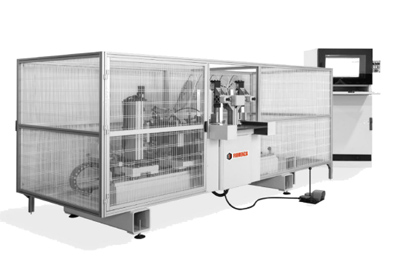

BORD1 CNC Edge-banding, trimming and drilling machine
BORD1 CNC Edge-banding, trimming and drilling machine
Technical data:
|
Color
|
RAL 9002
|
|
Carter color
|
RED
|
|
Machine dimensions:
Length [mm]
|
4200
|
|
Width [mm]
|
2150
|
|
Heigth [mm]
|
2200
|
|
Machine weight: [kg]
|
2200
|
|
Power supply:
|
400V 16A 50Hz
|
|
Power: [kW]
|
8
|
|
Air pressure: [bar]
|
6
|
|
Air consumption: [lt/h]
|
2400
|
|
Suction speed: [m/s]
|
30 (min)
|
|
Edge band sliding speed [m/min]
|
9 ÷ 18
|
|
Part dimensions
: Length min [mm]
|
100
|
|
Length max [mm]
|
No limit
|
|
Width min [mm]
|
20
|
|
Width max [mm]
|
200
|
|
Heigth min [mm]
|
10
|
|
Heigth max [mm]
|
60
|
|
Edge band thickness:[mm]
|
0.15 ÷ 2
|
|
Type of glue:
|
Hot-melt base EVA (mPa.s 70000 ÷ 100000)
|
|
|
P.U.R ( polyurethane) EVA（mPa.s 70000÷100000）
P.U.R
|
